Slack And Pagerduty Notification on Icinga2

Hello Team,

I have configured icinga2 on linux server. Everything is working as expected but for Host and Service I am receiving notification only for ping4 service. For other services I am not getting notification on slack and PagerDuty. Here is the output of icinga2 object list --type Notification
I want notification for all services.

Object ‘saaskarma!ping4!pagerduty-service’ of type ‘Notification’:
% declared in ‘/etc/icinga2/conf.d/pagerduty-icinga2.conf’, lines 75:1-75:49

  • __name = “saaskarma!ping4!pagerduty-service”
  • command = “notify-service-by-pagerduty”
    % = modified in ‘/etc/icinga2/conf.d/pagerduty-icinga2.conf’, lines 76:3-76:41
  • command_endpoint = “”
  • host_name = “saaskarma”
    % = modified in ‘/etc/icinga2/conf.d/pagerduty-icinga2.conf’, lines 75:1-75:49
  • interval = 1800
  • name = “pagerduty-service”
  • package = “_etc”
    % = modified in ‘/etc/icinga2/conf.d/pagerduty-icinga2.conf’, lines 75:1-75:49
  • period = “24x7”
    % = modified in ‘/etc/icinga2/conf.d/pagerduty-icinga2.conf’, lines 79:3-79:17
  • service_name = “ping4”
    % = modified in ‘/etc/icinga2/conf.d/pagerduty-icinga2.conf’, lines 75:1-75:49
  • source_location
    • first_column = 1
    • first_line = 75
    • last_column = 49
    • last_line = 75
    • path = “/etc/icinga2/conf.d/pagerduty-icinga2.conf”
  • states = [ “OK”, “Warning”, “Critical”, “Unknown” ]
    % = modified in ‘/etc/icinga2/conf.d/pagerduty-icinga2.conf’, lines 77:3-77:45
  • templates = [ “pagerduty-service” ]
    % = modified in ‘/etc/icinga2/conf.d/pagerduty-icinga2.conf’, lines 75:1-75:49
  • times = null
  • type = “Notification”
  • types = [ “Problem”, “Acknowledgement”, “Recovery” ]
    % = modified in ‘/etc/icinga2/conf.d/pagerduty-icinga2.conf’, lines 78:3-78:48
  • user_groups = null
  • users = [ “pagerduty” ]
    % = modified in ‘/etc/icinga2/conf.d/pagerduty-icinga2.conf’, lines 80:3-80:25
  • vars = null
  • zone = “master”
    % = modified in ‘/etc/icinga2/conf.d/pagerduty-icinga2.conf’, lines 75:1-75:49

Object ‘saaskarma!ping4!slack-notifications-notification-services’ of type ‘Notification’:
% declared in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 66:1-66:73

  • __name = “saaskarma!ping4!slack-notifications-notification-services”
  • command = “slack-notifications-command”
    % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 45:5-45:43
  • command_endpoint = “”
  • host_name = “saaskarma”
    % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 66:1-66:73
  • interval = 900
    % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 12:5-12:18
  • name = “slack-notifications-notification-services”
  • package = “_etc”
    % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 66:1-66:73
  • period = “24x7”
    % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 10:5-10:19
  • service_name = “ping4”
    % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 66:1-66:73
  • source_location
    • first_column = 1
    • first_line = 66
    • last_column = 73
    • last_line = 66
    • path = “/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf”
  • states = [ “OK”, “Warning”, “Critical”, “Unknown” ]
    % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 51:5-51:47
  • templates = [ “slack-notifications-notification-services”, “slack-notifications-user-configuration-services”, “slack-notifications-default-configuration-services”, “slack-notifications-configuration”, “slack-notifications-user-configuration”, “slack-notifications-default-configuration” ]
    % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 66:1-66:73
    % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-user-configuration.conf’, lines 12:1-12:71
    % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 48:1-48:74
    % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 42:1-42:57
    % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-user-configuration.conf’, lines 1:0-1:61
    % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 1:0-1:64
  • times = null
  • type = “Notification”
  • types = [ “Problem”, “Acknowledgement”, “Recovery”, “Custom”, “FlappingStart”, “FlappingEnd” ]
    % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 6:5-7:42
  • user_groups = null
  • users = [ “slack-notification-user” ]
    % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 8:5-8:41
  • vars
    • slack_notifications_botname = “icinga”
      % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 15:5-15:47
    • slack_notifications_channel = “#icinga-rawneg
      % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 14:5-14:55
    • slack_notifications_color_dictionary
      % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 17:5-24:5
      • CRITICAL = “danger”
      • DOWN = “danger”
      • OK = “good”
      • UNKNOWN = “grey”
      • UP = “good”
      • WARNING = “warning”
    • slack_notifications_icinga2_base_url = “https://icinga.raweng.net
      % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-user-configuration.conf’, lines 5:5-5:75
    • slack_notifications_icon_dictionary
      % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 25:5-39:5
      • ACKNOWLEDGEMENT = “ballot_box_with_check”
      • CRITICAL = “red_circle”
      • CUSTOM = “speaking_head_in_silhouette”
      • DOWNTIMEEND = “arrow_down_small”
      • DOWNTIMEREMOVED = “leftwards_arrow_with_hook”
      • DOWNTIMESTART = “arrow_up_small”
      • FLAPPINGEND = “small_red_triangle_down”
      • FLAPPINGSTART = “small_red_triangle”
      • OK = “large_blue_circle”
      • PROBLEM = “red_circle”
      • RECOVERY = “large_blue_circle”
      • UNKNOWN = “grey_question”
      • WARNING = “bell”
    • slack_notifications_plugin_output_max_length = 3500
      % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 16:5-16:60
    • slack_notifications_webhook_url = “https://hooks.slack.com/services/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
      % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-user-configuration.conf’, lines 4:5-4:124
  • zone = “master”
    % = modified in ‘/etc/icinga2/conf.d/slack-notifications/slack-notifications-configuration.conf’, lines 66:1-66:73

Hello Dave!

Please share /etc/icinga2/conf.d/pagerduty-icinga2.conf .

Best,
A/K

object User “pagerduty” {
pager = “token
groups = [ “sports-pd-users” ]
display_name = “Sports PagerDuty Notification User”
states = [ OK, Warning, Critical, Unknown, Up, Down ]
types = [ Problem, Acknowledgement, Recovery ]
}

object NotificationCommand “notify-service-by-pagerduty” {
import “plugin-notification-command”
command = [ “/usr/share/pdagent-integrations/bin/pd-nagios” ]
arguments = {
“-n” = {
order = 0
value = “service”
}
“-k” = {
order = 1
value = “$user.pager$”
}
“-t” = {
order = 2
value = “$notification.type$”
}
“-f” = {
order = 3
repeat_key = true
value = “$f_args$”
}
}

vars.f_args = [
“SERVICEDESC=$service.name$”,
“SERVICEDISPLAYNAME=$service.display_name$”,
“HOSTNAME=$host.name$”,
“HOSTSTATE=$host.state$”,
“HOSTDISPLAYNAME=$host.display_name$”,
“SERVICESTATE=$service.state$”,
“SERVICEPROBLEMID=$service.state_id$”,
“SERVICEOUTPUT=$service.output$”
]
}

object NotificationCommand “notify-host-by-pagerduty” {
import “plugin-notification-command”
command = [ “/usr/share/pdagent-integrations/bin/pd-nagios” ]
arguments = {
“-n” = {
order = 0
value = “host”
}
“-k” = {
order = 1
value = “$user.pager$”
}
“-t” = {
order = 2
value = “$notification.type$”
}
“-f” = {
order = 3
repeat_key = true
value = “$f_args$”
}
}

vars.f_args = [
“HOSTNAME=$host.name$”,
“HOSTSTATE=$host.state$”,
“HOSTPROBLEMID=$host.state_id$”,
“HOSTOUTPUT=$host.output$”
]
}

apply Notification “pagerduty-service” to Service {
command = “notify-service-by-pagerduty”
states = [ OK, Warning, Critical, Unknown ]
types = [ Problem, Acknowledgement, Recovery ]
period = “24x7”
users = [ “pagerduty” ]
assign where service.vars.enable_pagerduty == true
}

apply Notification “pagerduty-host” to Host {
command = “notify-host-by-pagerduty”
states = [ Up, Down ]
types = [ Problem, Acknowledgement, Recovery ]
period = “24x7”
users = [ “pagerduty” ]
assign where host.vars.enable_pagerduty == true
}

Are you sure you didn’t forget some vars.enable_pagerduty=true?

Where is suppose to mention this? Actually I am new to Icinga2 setup and only for ping4 service I am getting slack and PagerDuty notification but for the other services and host I am not receiving any notification.

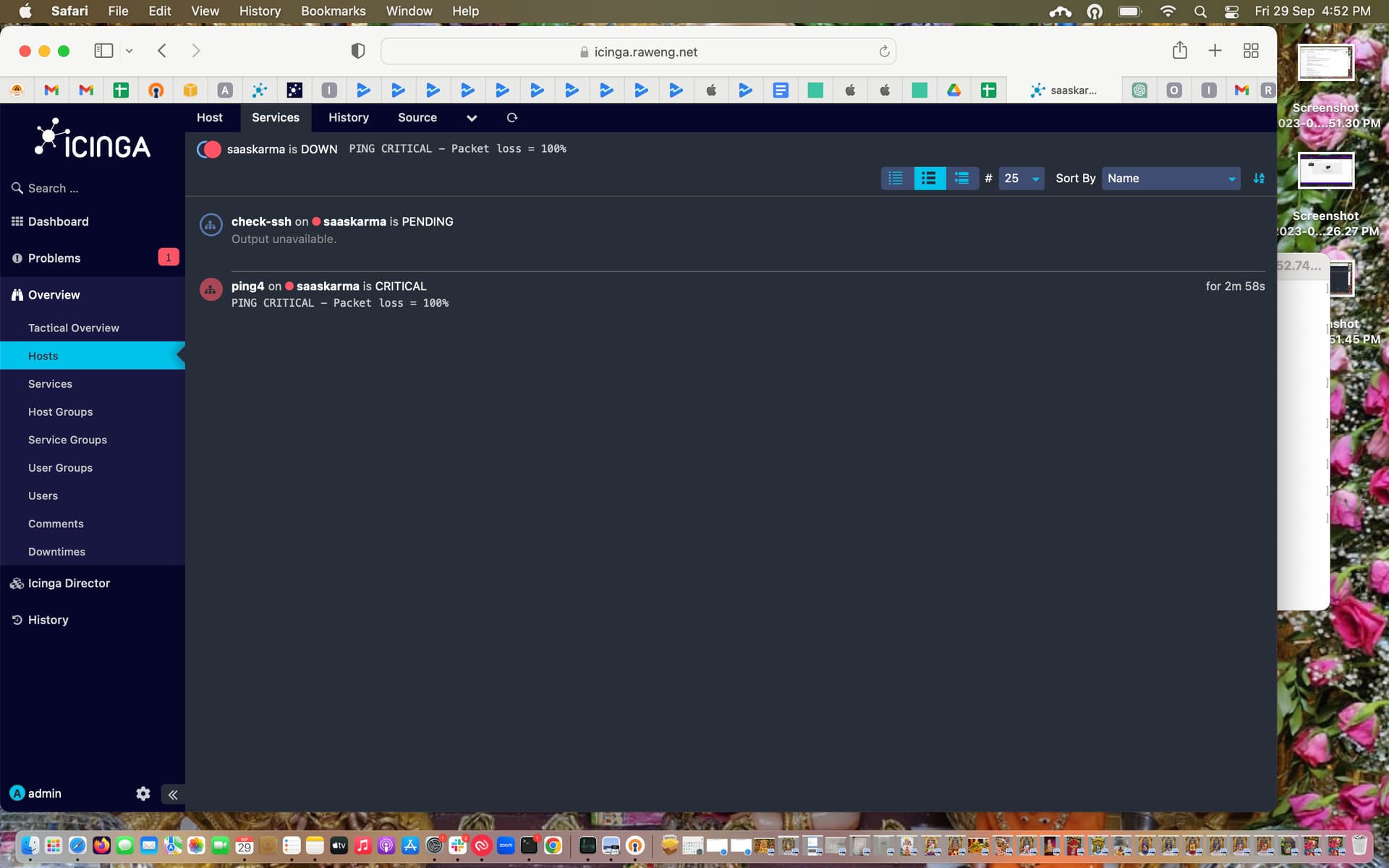

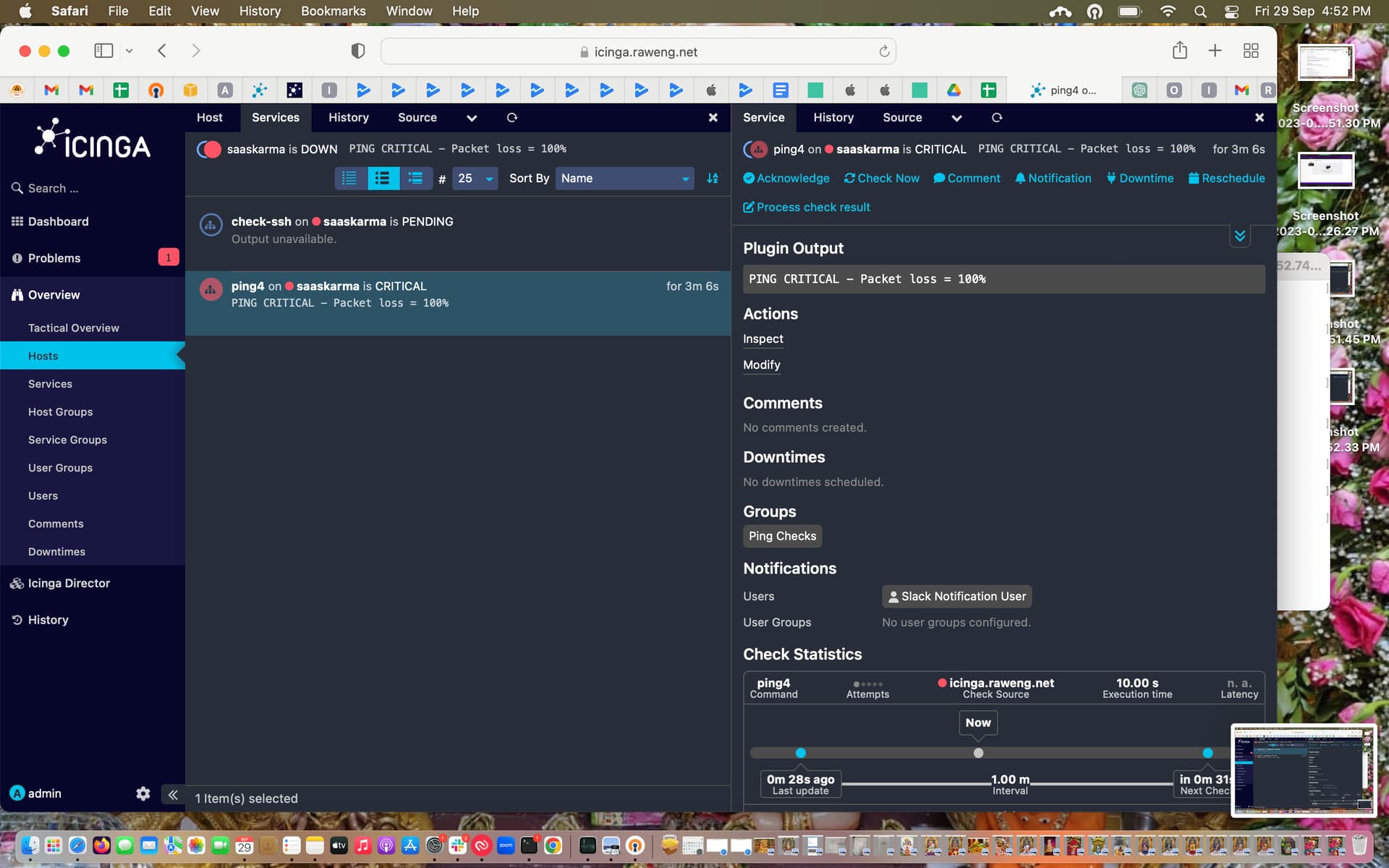

Also I have observed one thing on icinga2 web . Please find this screenshot for your reference.

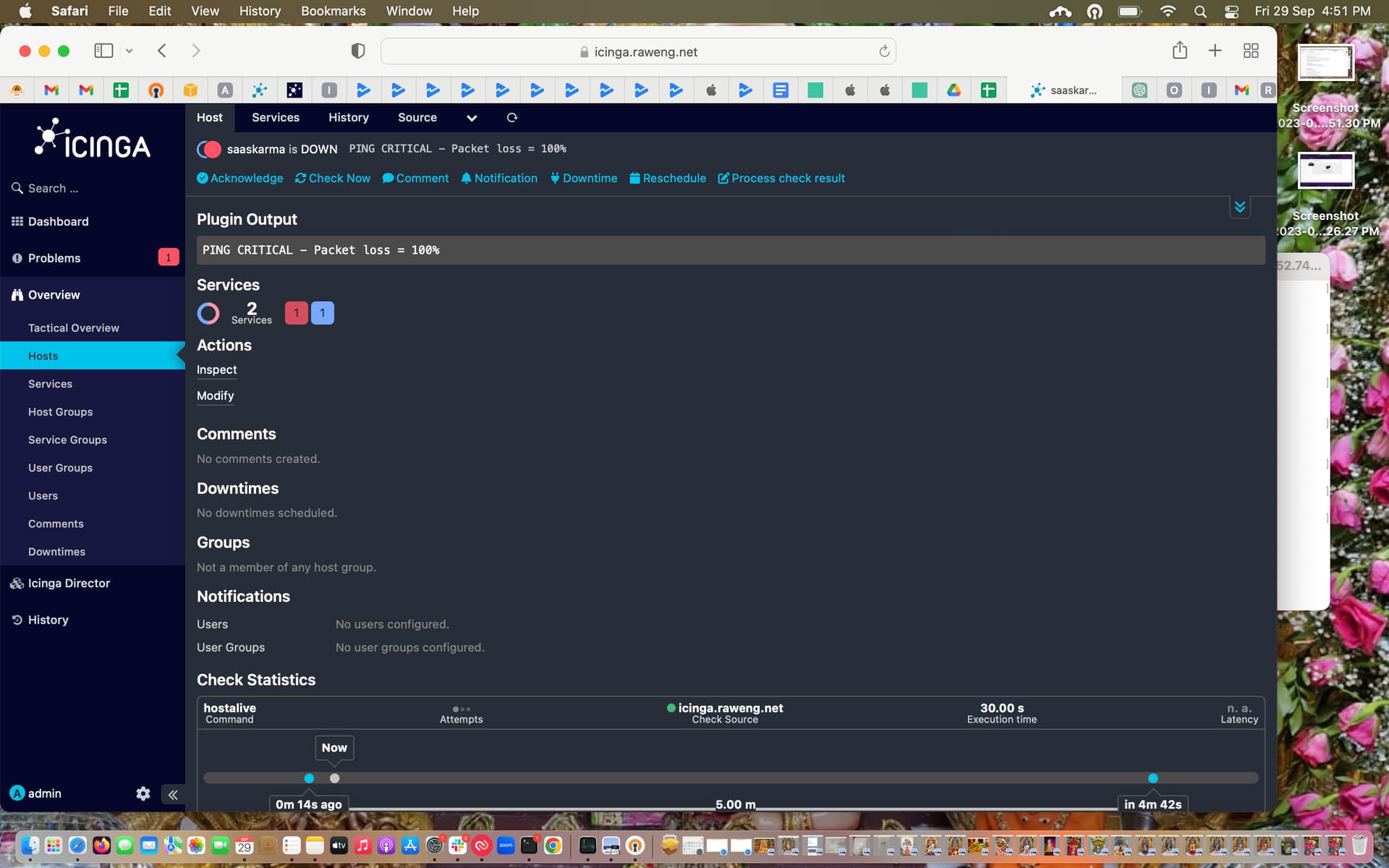

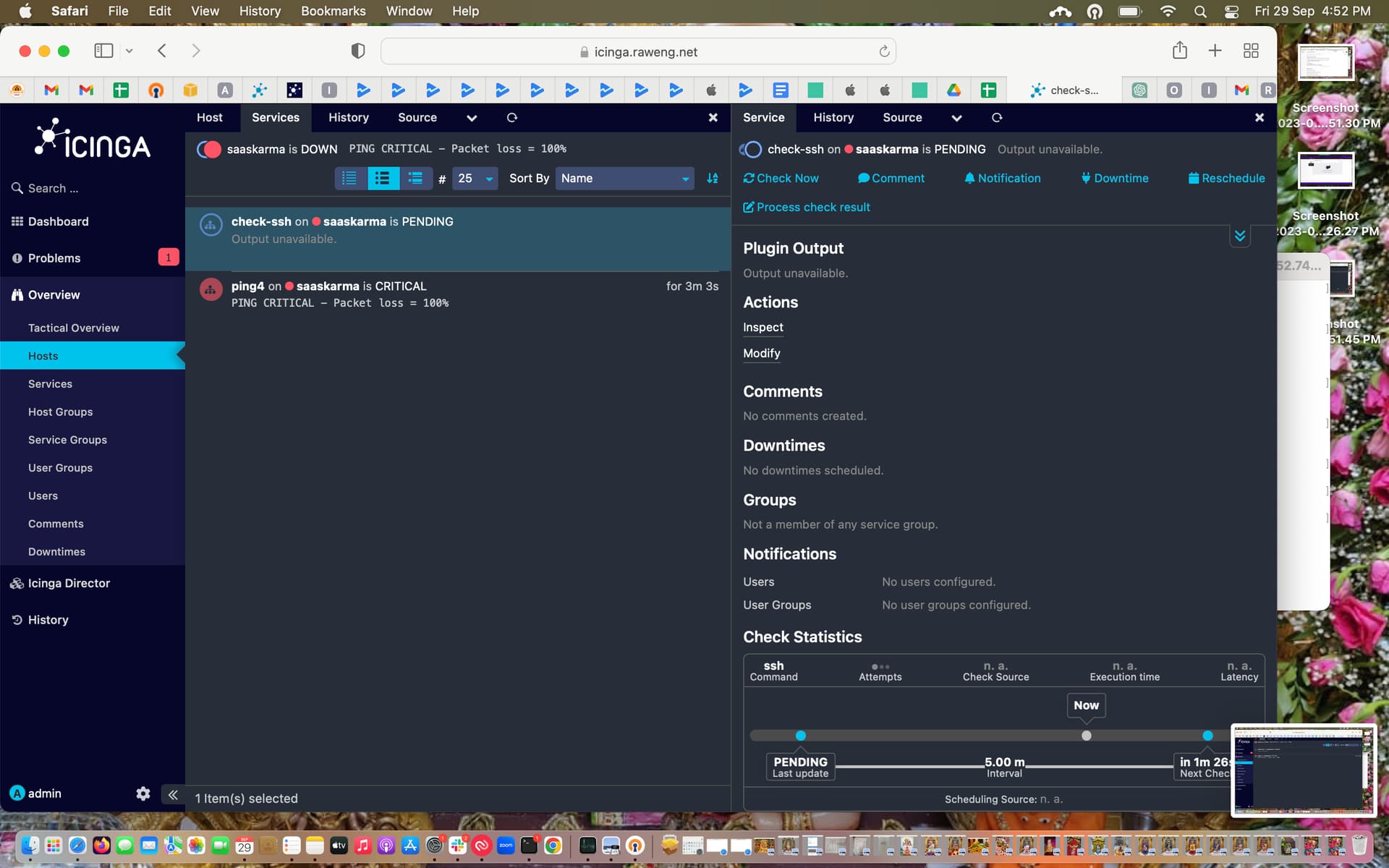

For the host and check-ssh service notification tab is empty and for the ping4 notification tab contains slack-notification-user
I dot have any idea how to assign notification user.
![Screenshot 2023-09-29 at 4.51.45 PM|690x431](upload://gYT



Please share the config of

  • a service you receive such notifications for
  • a service you don’t (but would like to) receive such notifications for

Command configuration
For ping4 service: Which is working fine
object CheckCommand “ping4” {
import “plugin-check-command”
command = [ PluginDir + “/check_ping”, “-4” ]
timeout = 1m
arguments += {
“-H” = {
description = “host to ping”
value = “$ping_address$”
}
“-c” = {
description = “critical threshold pair”
value = “$ping_crta$,$ping_cpl$%”
}
“-p” = {
description = “number of ICMP ECHO packets to send (Default: 5)”
value = “$ping_packets$”
}
“-t” = {
description = “Seconds before connection times out (default: 10)”
value = “$ping_timeout$”
}
“-w” = {
description = “warning threshold pair”
value = “$ping_wrta$,$ping_wpl$%”
}
}
vars.ping_address = “$address$”
vars.ping_cpl = 15
vars.ping_crta = 200
vars.ping_wpl = 5
vars.ping_wrta = 100
}

For check_memory command notification is not working
object CheckCommand “check_memory” {
import “plugin-check-command”
command = [ “/opt/icinga2-plugins/check_memory.pl”, “-u”, “-C” ]
timeout = 30s
arguments += {
“-c” = {
description = “CRITICAL alert threshold limit”
repeat_key = false
required = true
value = “$mem_crit$”
}
“-w” = {
description = “Warning threshold value”
repeat_key = false
required = true
value = “$mem_warn$”
}
}

vars.mem_crit = "90"
vars.mem_warn = "85"

}

Ping4 service conf working fine for notification

apply Service “ping4” {
import “generic-service”

check_command = “ping4”

assign where host.address
}

Check_memory for which notification not working

apply Service “check_memory” {
import “check_memory”

assign where "nonprod-generic-active-sports" in host.templates
zone = "master"

import DirectorOverrideTemplate

}

I have created all the commands, services and host templates from Icinga Web.

Strange, you reported it’s working somewhere, but I don’t see vars.enable_pagerduty = true anywhere. Please could you search for a such setting in the output of icinga2 object list -t service and share respective services?

Output of icinga2 object list -t service

root@icinga:/home/ubuntu# icinga2 object list -t service
Object ‘saaskarma!check-ssh’ of type ‘Service’:
% declared in ‘/var/lib/icinga2/api/packages/director/cf8654a7-a0ee-4e70-853d-23bc6366dc6f/zones.d/master/service_apply.conf’, lines 1:0-1:24

  • __name = “saaskarma!check-ssh”
  • action_url = “”
  • check_command = “ssh”
    % = modified in ‘/var/lib/icinga2/api/packages/director/cf8654a7-a0ee-4e70-853d-23bc6366dc6f/zones.d/master/service_templates.conf’, lines 2:5-2:25
  • check_interval = 300
  • check_period = “”
  • check_timeout = null
  • command_endpoint = “saaskarma”
    % = modified in ‘/var/lib/icinga2/api/packages/director/cf8654a7-a0ee-4e70-853d-23bc6366dc6f/zones.d/master/service_templates.conf’, lines 3:5-3:32
  • display_name = “check-ssh”
  • enable_active_checks = true
  • enable_event_handler = true
  • enable_flapping = false
  • enable_notifications = true
  • enable_passive_checks = true
  • enable_perfdata = true
  • event_command = “”
  • flapping_ignore_states = null
  • flapping_threshold = 0
  • flapping_threshold_high = 30
  • flapping_threshold_low = 25
  • groups =
  • host_name = “saaskarma”
    % = modified in ‘/var/lib/icinga2/api/packages/director/cf8654a7-a0ee-4e70-853d-23bc6366dc6f/zones.d/master/service_apply.conf’, lines 1:0-1:24
  • icon_image = “”
  • icon_image_alt = “”
  • max_check_attempts = 3
  • name = “check-ssh”
    % = modified in ‘/var/lib/icinga2/api/packages/director/cf8654a7-a0ee-4e70-853d-23bc6366dc6f/zones.d/master/service_apply.conf’, lines 1:0-1:24
  • notes = “”
  • notes_url = “”
  • package = “director”
    % = modified in ‘/var/lib/icinga2/api/packages/director/cf8654a7-a0ee-4e70-853d-23bc6366dc6f/zones.d/master/service_apply.conf’, lines 1:0-1:24
  • retry_interval = 60
  • source_location
    • first_column = 0
    • first_line = 1
    • last_column = 24
    • last_line = 1
    • path = “/var/lib/icinga2/api/packages/director/cf8654a7-a0ee-4e70-853d-23bc6366dc6f/zones.d/master/service_apply.conf”
  • templates = [ “check-ssh”, “check_ssh”, “host var overrides (Director)” ]
    % = modified in ‘/var/lib/icinga2/api/packages/director/cf8654a7-a0ee-4e70-853d-23bc6366dc6f/zones.d/master/service_apply.conf’, lines 1:0-1:24
    % = modified in ‘/var/lib/icinga2/api/packages/director/cf8654a7-a0ee-4e70-853d-23bc6366dc6f/zones.d/master/service_templates.conf’, lines 1:0-1:27
    % = modified in ‘/var/lib/icinga2/api/packages/director/cf8654a7-a0ee-4e70-853d-23bc6366dc6f/zones.d/director-global/001-director-basics.conf’, lines 28:3-28:43
  • type = “Service”
  • vars = null
    % = modified in ‘/var/lib/icinga2/api/packages/director/cf8654a7-a0ee-4e70-853d-23bc6366dc6f/zones.d/director-global/001-director-basics.conf’, lines 43:7-43:50
  • volatile = false
  • zone = “master”
    % = modified in ‘/var/lib/icinga2/api/packages/director/cf8654a7-a0ee-4e70-853d-23bc6366dc6f/zones.d/master/service_apply.conf’, lines 1:0-1:24
    % = modified in ‘/var/lib/icinga2/api/packages/director/cf8654a7-a0ee-4e70-853d-23bc6366dc6f/zones.d/master/service_apply.conf’, lines 6:5-6:19

Object ‘saaskarma!ping4’ of type ‘Service’:
% declared in ‘/etc/icinga2/conf.d/services.conf’, lines 26:1-26:21

  • __name = “saaskarma!ping4”
  • action_url = “”
  • check_command = “ping4”
    % = modified in ‘/etc/icinga2/conf.d/services.conf’, lines 29:3-29:25
  • check_interval = 60
    % = modified in ‘/etc/icinga2/zones.d/global-templates/templates.conf’, lines 35:3-35:21
  • check_period = “”
  • check_timeout = null
  • command_endpoint = “”
  • display_name = “ping4”
  • enable_active_checks = true
  • enable_event_handler = true
  • enable_flapping = false
  • enable_notifications = true
  • enable_passive_checks = true
  • enable_perfdata = true
  • event_command = “”
  • flapping_ignore_states = null
  • flapping_threshold = 0
  • flapping_threshold_high = 30
  • flapping_threshold_low = 25
  • groups =
  • host_name = “saaskarma”
    % = modified in ‘/etc/icinga2/conf.d/services.conf’, lines 26:1-26:21
  • icon_image = “”
  • icon_image_alt = “”
  • max_check_attempts = 5
    % = modified in ‘/etc/icinga2/zones.d/global-templates/templates.conf’, lines 34:3-34:24
  • name = “ping4”
    % = modified in ‘/etc/icinga2/conf.d/services.conf’, lines 26:1-26:21
  • notes = “”
  • notes_url = “”
  • package = “_etc”
    % = modified in ‘/etc/icinga2/conf.d/services.conf’, lines 26:1-26:21
  • retry_interval = 30
    % = modified in ‘/etc/icinga2/zones.d/global-templates/templates.conf’, lines 36:3-36:22
  • source_location
    • first_column = 1
    • first_line = 26
    • last_column = 21
    • last_line = 26
    • path = “/etc/icinga2/conf.d/services.conf”
  • templates = [ “ping4”, “generic-service” ]
    % = modified in ‘/etc/icinga2/conf.d/services.conf’, lines 26:1-26:21
    % = modified in ‘/etc/icinga2/zones.d/global-templates/templates.conf’, lines 33:1-33:34
  • type = “Service”
  • vars
    • enable_email_for = “web”
      % = modified in ‘/etc/icinga2/zones.d/global-templates/templates.conf’, lines 39:3-39:31
    • enable_pagerduty = true
      % = modified in ‘/etc/icinga2/zones.d/global-templates/templates.conf’, lines 37:3-37:30
    • slack_notifications = “enabled”
      % = modified in ‘/etc/icinga2/zones.d/global-templates/templates.conf’, lines 38:3-38:38
  • volatile = false
  • zone = “master”
    % = modified in ‘/etc/icinga2/conf.d/services.conf’

Just a question is there any way to modify slack and PagerDuty variable using Icinga Web as I have created all the objects , commands, services, host templete using web.?

Attac


hing image for your reference.


There seems to be a template in templates.conf you imported only for ping4.

So one question is the template.conf is responsible for slack_notification and PagerDuty?
If Yes then how to do for other services? Also I have 2 zones “global-template” and “master” so in which zone template.conf should be placed?
Is it possible using Icinga Web?

OK, first of all, what is there?

template Host “generic-host” {
check_command = “hostalive”
max_check_attempts = 3
check_interval = 1m
retry_interval = 30s
vars.enable_pagerduty = true
vars.slack_notifications = “enabled”
vars.enable_email_for = “web”
}

/**

  • Provides default settings for services. By convention
  • all services should import this template.
    */
    template Service “generic-service” {
    max_check_attempts = 5
    check_interval = 1m
    retry_interval = 30s
    vars.enable_pagerduty = true
    vars.slack_notifications = “enabled”
    vars.enable_email_for = “web”
    }

/**

  • Provides default settings for users. By convention
  • all users should inherit from this template.
    */

template User “generic-user” {

}

The services you miss notifications for seem to miss import “generic-service” as in ping4. If you created some via Director, you should add the generic-service template there.

But how to add notification in web?
bca the service for which import is missing is created using web.

On which page of web exactly?

this page where notification is empty but for ping4 service notification has user name.
