Monitor Windows Clients ( DISK CPU and others)

[mouhssine (houari)]

Hello Amazing Community
I have problem while adding windows Host to Icinga
in my Windows Machine , i have open the port 5665 IN and OUT in my LOCAL FIREWALL

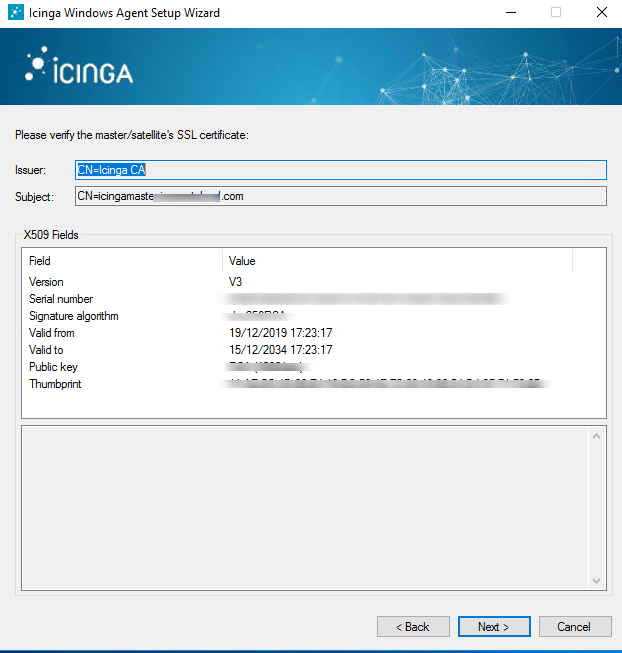

second , i have installed the agent , add the signed ticket ( see the capture)

after that , i restarted the service of icinga in windows machine,
in my master node ( which is centos 7 machine)
i have added the configuration file for this machine under /etc/icinga2/zone.d/master.myfile.conf

object Endpoint "WPPSE0006.com" {
}

object Zone "WPPSE0006.com" {
     endpoints = [ "WPPSE0006.com" ]
     parent = "master"
}

object Host "WPPSE0006.com" {
   vars.client_endpoint = name
    import "generic-host"
    check_command = "hostalive"
    address = "x.x.x.x"
    display_name = "PREPROD 0"
    vars.os = "Windows"
vars.notification["mail"] = {
    groups = [ "icingaadmins" ]
    users = ["icingaadmin"]
  }
enable_notifications = true
vars.notification_type = "email"
}
vars.disks_windows["disk C:"] = {
    disk_win_path = "C:"
  }

the disk check for windows under service.conf who is the same position as hosts.conf in /etc/icinga2/zoned.d/master

apply Service for (disk => config in host.vars.disks_windows)  {
  import "generic-service"
  check_command = "disk-windows"
  command_endpoint = host.vars.client_endpoint
  assign where host.vars.agent_endpoint
  vars += config
assign where host.vars.os == "Windows"
}

But i can only view the hostalive check and no disk
I watched many videos on youtube , they just add the windows hostname in the right config file and all the services will be up automaticaly but nothing happend for me
Any advices and what should i do ?
thank you all
Cordially

[mouhssine (houari)]

Any News guys ?
I tried with the same as monitoring disk like centos but for windows-disk
i get the value of partition in linux and not C:/ or D:/
Whaat should i do ?

[log1c]

I have edited your post for better readability of the config snippets.

Please use the code formatting (backticks ```) in the future, so that it is easier for people to read
You find a overview of the editor options here:

Create topics and master Markdown formatting

Edit and write topics Discourse uses Markdown as markup language. If you are familiar with GitHub, you’re good to go. If not, please follow this guide. [48] While you type something into the editor, you’ll recognize many things: live preview as you type on the right side if someone else is replying, a short notice on top of the editor you can navigate to a different page, and still reply to the “old” topic sessions are stored, which means that a draft text can be started on your Macbook…

back to topic
not sure if two single assign statements work, so put them in one:
assign where host.vars.os == "Windows" && host.vars.agent_endpoint

[mouhssine (houari)]

@log1c

assign where host.vars.os == "Windows" && host.vars.agent_endpoint

Okay , Im new in this community and i dont know all what should i do, thanks for the references
But for my issue i edited that and its not working and what i get is the partition of Linux and not the C:/ or other partitions

[mouhssine (houari)]

There is no new about this topic ?

[rsx (Roland Sommer)]

You need to define zone and endpoint objects in zones.conf only if you are using V2.11. Apply For do not need any assign rules.

[unic (Rafael Voss)]

@log1c

I have edited your post for better readability of the config snippets.

Please use the code formatting (backticks ```) in the future, so that it is easier for people to read
You find a overview of the editor options here:

Always a good idea, as its hard to see if the brackets are at the right position

object Host "WPPSE0006.com" {
    import "generic-host"
    check_command = "hostalive"
    address = "x.x.x.x"
    display_name = "PREPROD 0"
    enable_notifications = true
    vars.client_endpoint = name
    vars.os = "Windows"
    vars.notification_type = "email"
    vars.notification["mail"] = {
        groups = [ "icingaadmins" ]
        users = ["icingaadmin"]
    }
    vars.disks_windows["disk C:"] = {
        disk_win_path = "C:"
    }
}

Try this, cleaned up code. Also, i moved vars.client_endpoint down. So, if your “generic-host” also defines it, it will not get overwritten by “generic-host”

[mouhssine (houari)]

Hello , Thanks a lot for replying , and i’m sorry for bein late, but he is always showing me the result based on linux system and not for windows

[unic (Rafael Voss)]

Have you corrected your host like i said?

Also giving the check a better name would be a good idea to make clear, where a check is coming from (at least for debugging):

apply Service "Windows-Disk-" for (disk => config in host.vars.disks_windows)  {

[mouhssine (houari)]

@unic

apply Service "Windows-Disk-" for (disk => config in host.vars.disks_windows)  {

Hello ,
yes i did and the result are here :

The status is always Pendind

[mouhssine (houari)]

Hello Again , I tried to modify the zone.conf file and i added just the name of the host without FQDN and the result is in the capture

i see here that the value is inversed like the disk F:/ is all free and the warning setting and the critical are inversed
Thanks all for your help , ill try to make the maximum and i’ll go back to you when i resolve the problem

[mouhssine (houari)]

Hello again ,
i have found the solution for this issue,
first, the name of the node client should be the same in the zone.conf file
second , i have add the line to get the right result in the client machine

    vars.disk_win_show_used = "true"

if you want the configuration in service.conf :

apply Service “Windows Disk” {
command_endpoint = host_name
check_command = “disk-windows”
vars.disk_win_show_used = “true”
vars.disk_win_warn = “80%”
vars.disk_win_crit = “90%”
assign where host.vars.os == “Windows”
}

Finnaly , i would like to thanks this great community
Thank you and the problem is resolved
Best Regards
Mouhssine.
