Variable Inheritance from Service-Sets

Icinga Web Modules Icinga Director
1

Hi,

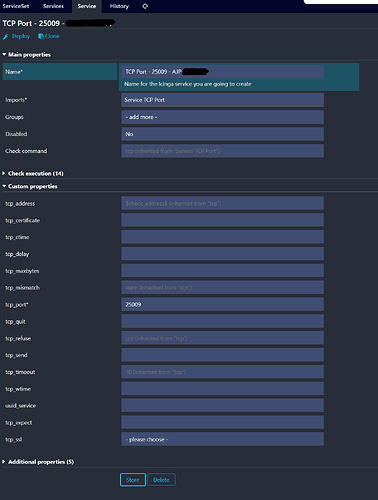

when Service-Sets are created the values of a service are usually inherited to the single hosts the service is assigned to. Here for instnace the Portnumber: 25009. At least i would expect so.

image1212×1602 44.2 KB

When I view the same Service assigned to the hosts the portnumber is missing. However the check itself is executed correctly with the port 25009:
‘/usr/lib64/nagios/plugins/check_tcp’ ‘-H’ ‘’ ‘-M’ ‘warn’ ‘-p’ ‘25009’ ‘-r’ ‘crit’ ‘-t’ ‘10’
The Icinga-Director View of the Service is missing the number.

image1117×1240 41.5 KB

Is this an expected behaviour? I would expect that the field tcp_port value is transparently passed over to the service object assigned to the host.

I use following Pckgs:
icinga-director-daemon-1.11.5-1.el8.noarch
icinga-director-1.11.5-1.el8.noarch
icinga-php-library-0.17.0-1.el8.noarch
vim-icinga2-2.15.0-1.el8.x86_64
icingaweb2-2.12.5-1.el8.noarch
icingadb-web-1.2.2-1.el8.noarch
icinga-selinux-common-1.0.0-1.el8.icinga.noarch
icinga2-bin-2.15.0-1.el8.x86_64
icinga2-common-2.15.0-1.el8.x86_64
php-icinga-2.12.5-1.el8.noarch
icingadb-1.4.0-1.el8.x86_64
icinga-l10n-1.3.0-1.el8.noarch
icinga-director-php-1.11.5-1.el8.noarch
icinga-php-incubator-0.22.0-1.el8.noarch
icinga2-2.15.0-1.el8.x86_64
icinga2-selinux-2.15.0-1.el8.x86_64
icingaweb2-common-2.12.5-1.el8.noarch
icinga-director-web-1.11.5-1.el8.noarch
icinga-php-thirdparty-0.13.1-1.el8.noarch
icingadb-redis-7.2.10-1.el8.x86_64
icingacli-2.12.5-1.el8.noarch
icinga2-ido-mysql-2.15.0-1.el8.x86_64

2

Hello,

Could you share a printscreen of the “Preview” tab in “resolved” mode? The “Services” tab is probably not configured to show the correct custom properties.

Best regards

Jean

3

Hi, thank you for your help!
This is the Service-Set snippet for the 25009 TCP-Check:

apply Service "TCP Port - 25009 - AJP XXX" {
    import "Service TCP Port"

    assign where host.name == "<fqdn>" || host.name == "<fqdn>"
    vars.tcp_port = "25009"

    import DirectorOverrideTemplate
}

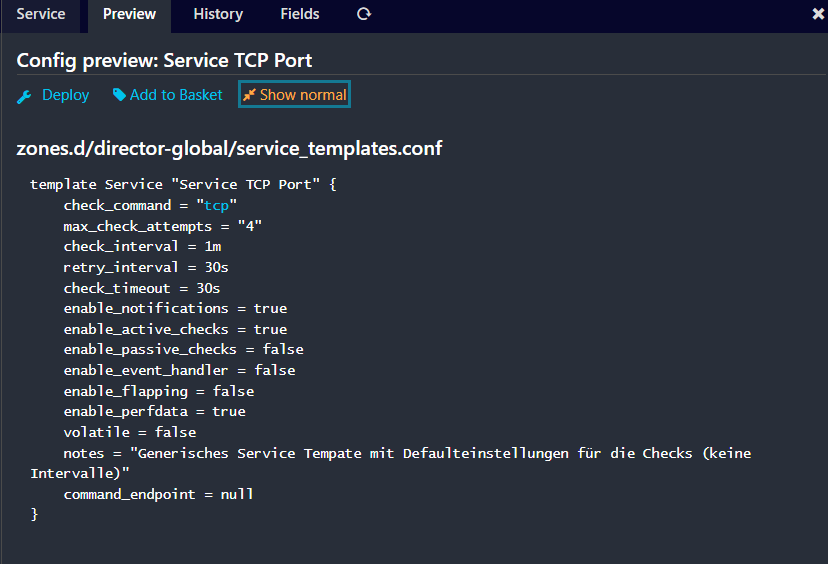

and here the Service-template the service in the service-set is importing.

image828×564 22.5 KB

4

Hi,

Thank you for this!

I think - to be confirmed by an expert - that you can have variables defined both at Service level (your case) and at Host level.

Icinga will try resolving the variable value (tcp_port in your case) first by looking at the closest object, then moving up. So in this case, tcp_port is being used by a Service object, is defined at Service level, and Icinga will use that value.

Now, your question is why Director doesn’t resolve the Service-level variable to show it in the Host definition. This would also need an expert to bring the answer.

What is really strange is that if your Service-level variable is defined within an imported Service Template, then the variable value does show in the Host window showing the Service…

Sorry not to be of more help…

Jean

5

Ok, thank you anyway!
But your custom variables defined in a service-set are resolved on host-level? I think it used to be resolved but I am not sure.
