Newbie Question: Recommend way to add agent-based services

Icinga Web Modules Icinga Director
1

hello,

I am needing some help with adding agent-based services via Icinga Director. With standard Icinga config files this would be done like:

apply Service "procs" {
  import "generic-service"

  check_command = "procs"

  assign where host.name == NodeName
}

apply Service "swap" {
  import "generic-service"

  check_command = "swap"

  assign where host.name == NodeName
}

apply Service "users" {
  import "generic-service"

  check_command = "users"

  assign where host.name == NodeName
}

But how is the recommended way with Icinga Director?

Regards

Henning

2

here is a snippet from my collection to reproduce some standard checks for the icinga master node:

echo '{ "HostTemplate": { "generic-host": { "check_command": "hostalive", "fields": [ { "datafield_id": 1, "is_required": "n", "var_filter": null } ], "object_name": "generic-host", "object_type": "template", "uuid": "8be076ec-e290-4a42-9539-55493b4be385" } }, "ServiceTemplate": { "generic-service": { "check_command": "dummy", "enable_active_checks": true, "enable_passive_checks": true, "enable_perfdata": true, "object_name": "generic-service", "object_type": "template", "uuid": "e053518d-a473-48fe-8105-f84a09c6e62e" } }, "ServiceSet": { "linux-basic": { "assign_filter": "host.vars.os=%22Linux%22", "object_name": "linux-basic", "object_type": "template", "services": [ { "check_command": "icinga", "imports": [ "generic-service" ], "object_name": "icinga2", "object_type": "object", "uuid": "e67480b7-f458-4490-a24c-e4977c167e87" }, { "check_command": "load", "imports": [ "generic-service" ], "object_name": "load", "object_type": "object", "uuid": "55f87741-4eab-47d0-aeed-27eed8e46950" }, { "check_command": "ping4", "imports": [ "generic-service" ], "object_name": "ping4", "object_type": "object", "uuid": "1145ca49-e522-4d44-af42-0f9e3cb436b9" }, { "check_command": "procs", "imports": [ "generic-service" ], "object_name": "procs", "object_type": "object", "uuid": "89f3e75e-759f-4f0b-841b-1d91f5eb6aab" }, { "check_command": "ssh", "imports": [ "generic-service" ], "object_name": "ssh", "object_type": "object", "uuid": "70e1c362-0c4f-460f-8f06-9e2f6ad65e00" }, { "check_command": "swap", "imports": [ "generic-service" ], "object_name": "swap", "object_type": "object", "uuid": "71a3fec2-1d9c-4346-9ce4-34f2d27b8b92" }, { "check_command": "users", "imports": [ "generic-service" ], "object_name": "users", "object_type": "object", "uuid": "dc11c4a2-1dd9-4e46-81a2-e734de13f935" } ], "uuid": "ba9e8af7-b4ec-42e6-ae78-1e1f2406d395" } }, "Datafield": { "1": { "uuid": "7f17a34e-5dad-4ec0-972f-4306ce5200ea", "varname": "os", "caption": "OS", "description": null, "datatype": "Icinga\\Module\\Director\\DataType\\DataTypeString", "format": null, "settings": { "visibility": "visible" }, "category": null } } }' > /tmp/basket.json

icingacli director basket restore --json < /tmp/basket.json

icingacli director host create ubuntu  --object_type object --import generic-host --json '{ "address":"127.0.0.1", "imports":"generic-host", "vars.os": "Linux" }'

This gives you some idea for a service set, a host template, apply rules …

This is intended for a fresh without any templates.
Use at your own risk, it might overwrite custom templates if the names are the same.

Director Kickstarter has to run once before fetching itl-commands from icinga2.

For agents, there is more work to do.

  • You need a service-template that has “Run on agent”=> Yes
  • You need a host-template that has “Icinga2 Agent” => Yes
  • You can’t add a service or service-template with “Run on agent”=> Yes to a host or host-template with “Icinga2 Agent” => No
  • the executable commadn needs to be present on the agent

Apart from that a Icinga Training might help

Best Regards

Nicolas

1 Like
3

I use the tags provided by the @linuxfabrik monitoring-plugins and my own custom tags.

For example:

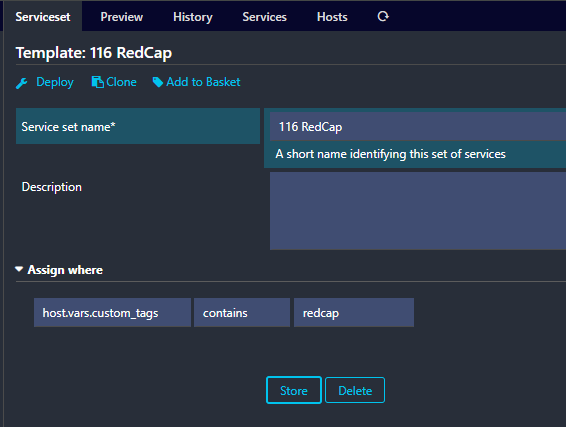

the apply rule on the service-set:

image566Ă—427 10.8 KB

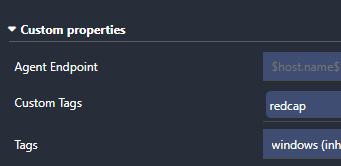

the tags on the host:
image341Ă—166 2.49 KB

The fields need to be added to the basic host template or they will not show up for you.
