How to add external commands

ExeLeNtCrypt · July 7, 2021, 6:12am

Good morning everybody,

i once again seem to have a simple problem of understanding:

System:
CentOS 7
Icinga 2.8.2
Director master

What i want to do:
I want to add the command check_fortigate.pl to my external commands.

What i have done:
I took the script and put it into /usr/lib64/nagios/plugins. Afterwards i run a Kickstart in order to import it. But that doesnt work.

I once had imported the check script, but after updating the director it removed it.

I hope somebody can help me.
Thanks in advance

dgoetz · July 7, 2021, 6:31am

There is no Checkcommand definition for Icinga 2 included, so you need to create it your own. This can be done in a file included in your configuration like described in the docs and then imported via Kickstart into the Director or by using the command wizard in the Director.

You could also contribute the Checkcommand definition to the ITL if you think it is useful to others.

ExeLeNtCrypt · July 7, 2021, 7:53am

So i found this, where at the bottom it has the definition of the check command.
I put it into a file and placed it at /usr/share/inlcude

But it doesnt work. Wrong folder?

From bcaa3dd4b0309d1f46e60c7baac83bf11517a53c Mon Sep 17 00:00:00 2001
From: riskersen <oliskibbe@gmail.com>
Date: Tue, 25 Jul 2017 07:59:37 +0200
Subject: [PATCH] Add Fortinet CheckCommand definition

refs #5429
---
 doc/10-icinga-template-library.md    | 28 ++++++++++++
 itl/plugins-contrib.d/CMakeLists.txt |  2 +-
 itl/plugins-contrib.d/fortinet.conf  | 86 ++++++++++++++++++++++++++++++++++++
 3 files changed, 115 insertions(+), 1 deletion(-)
 create mode 100644 itl/plugins-contrib.d/fortinet.conf

diff --git a/doc/10-icinga-template-library.md b/doc/10-icinga-template-library.md
index ac90f74..2c1659c 100644
--- a/doc/10-icinga-template-library.md
+++ b/doc/10-icinga-template-library.md
@@ -374,6 +374,34 @@ Name               | Description
 flexlm_licensefile | **Required.** Name of license file (usually license.dat).
 flexlm_timeout     | **Optional.** Plugin time out in seconds. Defaults to 15.

+### fortinet <a id="plugin-check-command-fortinet"></a>
+The [check_fortigate.pl] (https://github.com/riskersen/Monitoring) plugin checks Fortinet devices.
+
+This CheckCommand expects an IPv4 address.
+
+Custom attributes passed as [command parameters](03-monitoring-basics.md#command-passing-parameters):
+
+Name                     | Description
+-------------------------|-------------------------
+fortinet_address         | **Optional.** The host's IPv4 address. Defaults to "$address$".
+fortinet_community       | **Optional.** The host's SNMP community. Defaults to public
+fortinet_snmpversion     | **Optional.** The host's SNMP version. Defaults to version 2 (community bsaed, v2c)
+fortinet_check           | **Optional.** What to check. Defaults to status
+fortinet_snmpv3user      | **Optional.** Applies for SNMPv3 only. Login user
+fortinet_snmpv3authpass  | **Optional.** Applies for SNMPv3 only. Authentication password
+fortinet_snmpv3authprot  | **Optional.** Applies for SNMPv3 only. Authentication protocol
+fortinet_snmpv3privpass  | **Optional.** Applies for SNMPv3 only. Privacy password
+fortinet_snmpv3privprot  | **Optional.** Applies for SNMPv3 only. Privacy protocol
+fortinet_serial          | **Optional.** Used to check if preferred master is actually master
+fortinet_slave           | **Optional.** Used to check slave node of a cluster
+fortinet_warn            | **Optional.** Warning threshold. Defaults to 75, UOM depends on the check type
+fortinet_crit            | **Optional.** Critical threshold. Defaults to 95, UOM depends on the check type
+fortinet_nosync          | **Optional.** Exclude in sync check from cluster status check
+fortinet_vpnoutput       | **Optional.** Applies for VPN check. Output-Mode: 0 => just print, 1 => print and show failed tunnel, 2 => critical
+fortinet_vpnmode         | **Optional.** Applies for VPN check. VPN-Mode: both => IPSec & SSL/OpenVPN, ipsec => IPSec only, ssl => SSL/OpenVPN only"
+fortinet_vpnwhitelist    | **Optional.** Applies for VPN IPSEC check. Include only entries matching a regular expression (applies before --blacklist)"
+fortinet_vpnblacklist    | **Optional.** Applies for VPN IPSEC check. Include only entries matching a regular expression (applies before --blacklist)"
+fortinet_filehelper      | **Optional.** Path to store helper files. Defaults to $TEMPPATH$"

 ### fping4 <a id="plugin-check-command-fping4"></a>

diff --git a/itl/plugins-contrib.d/CMakeLists.txt b/itl/plugins-contrib.d/CMakeLists.txt
index 27d2b7e..e56ed7b 100644
--- a/itl/plugins-contrib.d/CMakeLists.txt
+++ b/itl/plugins-contrib.d/CMakeLists.txt
@@ -16,6 +16,6 @@
 # Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-1301, USA.

 install(
-  FILES databases.conf hardware.conf icingacli.conf ipmi.conf logmanagement.conf metrics.conf network-components.conf network-services.conf operating-system.conf raid-controller.conf smart-attributes.conf storage.conf virtualization.conf vmware.conf web.conf
+  FILES databases.conf fortinet.conf hardware.conf icingacli.conf ipmi.conf logmanagement.conf metrics.conf network-components.conf network-services.conf operating-system.conf raid-controller.conf smart-attributes.conf storage.conf virtualization.conf vmware.conf web.conf
   DESTINATION ${CMAKE_INSTALL_DATADIR}/icinga2/include/plugins-contrib.d
 )
diff --git a/itl/plugins-contrib.d/fortinet.conf b/itl/plugins-contrib.d/fortinet.conf
new file mode 100644
index 0000000..7efe246
--- /dev/null
+++ b/itl/plugins-contrib.d/fortinet.conf
@@ -0,0 +1,86 @@
+object CheckCommand "fortinet" {
+	command = [ PluginDir + "/check_fortigate.pl" ]
+
+        arguments = {
+		"-H" = {
+			value = "$fortinet_address$"
+			required = true
+		}
+       		"-C" = "$fortinet_community$"
+		"-v" = "$fortinet_snmpversion$"
+        	"-T" = {
+			value = "$fortinet_check$"
+			description = "CPU, network, Memory, Cluster, Sessions, VPN, Disk-Space. Consult help output if more info needed!"
+		}
+		"-U" = {
+			set_if = "$fortinet_snmpv3user$"
+			description = "SNMPv3 Auth user"
+		}
+		"-A" = {
+			set_if = "$fortinet_snmpv3authpass$"
+			description = "SNMPv3 Auth password"
+		}
+		"-a" = {
+			set_if = "$fortinet_snmpv3authprot$"
+			description = "SNMPv3 Auth protocol (defaults to SHA)"
+		}
+		"-X" = {
+			set_if = "$fortinet_snmpv3privpass$"
+			description = "SNMPv3 Priv password"
+		}
+		"-x" = {
+			set_if = "$fortinet_snmpv3privprot$"
+			description = "SNMPv3 Priv protocol (defaults to AES)"
+		}
+		"-S" = {
+			set_if = "$fortinet_serial$"
+			description = "Serial number for identification of primary master"
+		}
+		"-s" = {
+			set_if = "$fortinet_slave$"
+			description = "Check on slave OIDs, please use dedicated mgmt interface or SNMP community by appending serial number to community"
+		}
+		"-w" = {
+			value = "$fortinet_warn$"
+			description = "Warning threshold, applies to cpu, mem, session, fazcpu, fazmem, fazdisk"
+		}
+		"-c" = {
+			value = "$fortinet_crit$"
+			description = "Critical threshold, applies to cpu, mem, session, fazcpu, fazmem, fazdisk"
+		}
+		"-n" = {
+			set_if = "$fortinet_nosync$"
+			description = "Exclude cluster synchronisation check (cluster only)"
+		}
+		"-M" = {
+			set_if = "$fortinet_vpnoutput$"
+			value = "$fortinet_vpnoutput$"
+			description = "Output-Mode: 0 => just print, 1 => print and show failed tunnel, 2 => critical"
+		}
+		"-V" = {
+			set_if = "$fortinet_vpnmode$"
+			value = "$fortinet_vpnmode$"
+			description = "VPN-Mode: both => IPSec & SSL/OpenVPN, ipsec => IPSec only, ssl => SSL/OpenVPN only"
+		}
+		"-W" = {
+			value = "$fortinet_vpnwhitelist$"
+			description = "Include only entries matching a regular expression (applies before --blacklist) / IPSEC only"
+		}
+		"-B" = {
+			value = "$fortinet_vpnblacklist$"
+			description = "Exclude entries matching a regular expression (applies after --whitelist) / IPSEC only"
+		}
+		"-p" = {
+			value = "$fortinet_filehelper$"
+			description = "Path to store helper files"
+		}
+	}
+
+	vars.fortinet_address = "$address$"
+	vars.fortinet_filehelper = "$TEMPPATH$"
+	vars.fortinet_warn = "75"
+	vars.fortinet_crit = "90"
+	vars.fortinet_community = "public"
+	vars.fortinet_snmpversion = "2"
+}
+
--
1.8.3.1

Thanks already

dgoetz · July 7, 2021, 8:31am

Have you done a reload of the configuration?

You are creating a new file, but this should still be picked up by the include_recursive in plugins-contrib. And I do not see an error in the definition, just some misaligned lines.

ExeLeNtCrypt · July 7, 2021, 8:56am

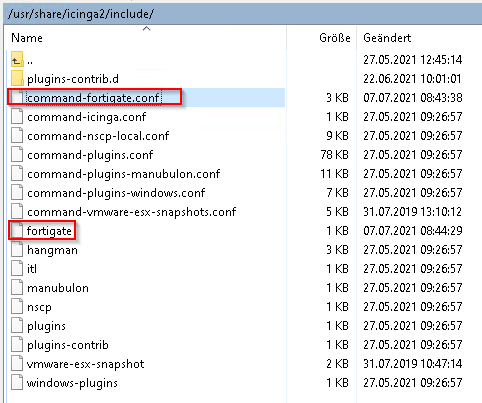

so this is what i have done:
grafik

and the file fortigate contains:

include "command-fortigate.conf"

ExeLeNtCrypt · July 13, 2021, 6:28am

still not working, can i get help please ?

rsx · July 15, 2021, 7:12am

First some words about the versions: I’d assume 2.8.2 is the version of icingaweb2. In case this is your production environment you should never use the master branch of any module.

When you want to go that complex way you need to add include <fortigate> to /etc/icinga2/icinga2.conf. In my opinion it’s easier (and you don’t manipulate package controlled files) to create a directory e.g. /opt/xyz/conf.d and add include_recursive = "/opt/xyz/conf.d" to /etc/icinga2/icinga2.conf. You can then place command-fortigate.conf in /opt/xyz/conf.d or any subdirectory.

ExeLeNtCrypt · July 20, 2021, 5:19am

Thank you very much that was the problem.
