After Graphite Installation unable to see the graphs

pranavrn · October 8, 2021, 11:52am

Hi Experts,

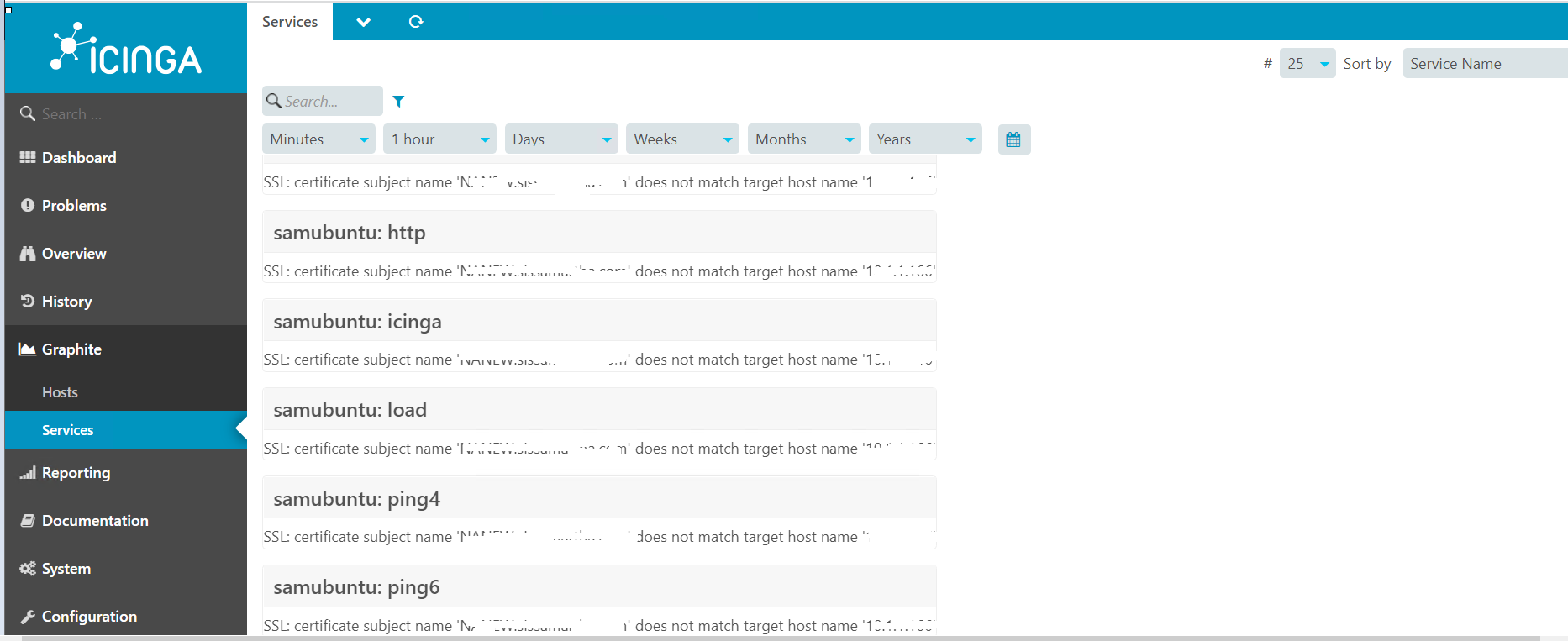

I have successfully installed and configured the graphite module and i can see the module in ICINGAweb2 and it’s enabled. Also i have added backend graphite web url as well. But unfortunately when i go and select the services or trying to fetch the graphs it’s giving me the attached error. Can anyone please help me out of this issue it is really appreciated.

Graphite is installed on RHEL 7.7 and ICINGA is installed on Ubuntu.

Regards,
Pranav R N

pranavrn · October 8, 2021, 1:53pm

Hi Team,

Can anyone help me out of this issue. Please…

Regards,
Pranav R N

Al2Klimov · October 8, 2021, 2:19pm

Hello @pranavrn!

Try this setting (1, not 0):

github.com

Icinga/icingaweb2-module-graphite/blob/e37aaf06377e5edb18e17111d7cbc6fe7b2267a6/.docker/icingaweb2/modules/graphite/config.ini#L3



          [graphite]
          url = "http://127.0.0.1"
          insecure = "0"

Best,
AK

pranavrn · October 8, 2021, 2:30pm

Hi AK,

Thanks for the reply. Yes i changed the value from 0 to 1 after changing this the error displayed got changed. Attached screenshot for your reference.

Regards,
Pranav R N

pranavrn · October 8, 2021, 2:46pm

Hi,

Somehow i tried again

and the error is changing to the different. Attached screenshot for the reference.

Regards,
Pranav R N

Al2Klimov · October 8, 2021, 3:07pm

It seems you’ve configured the wrong URL.

pranavrn · October 12, 2021, 6:45am

Hi Ak,

Thanks for the suggestion and help. Issue has been resolved. I changed the value from 0 to 1 in config.ini and restart the carbon service it works perfect…

Regards,
Pranav R N

pranavrn · October 12, 2021, 6:47am

Also I provided the correct URL in the graphite module backend.

Regards,
Pranav R N
